ZDSI series motors have two speeds: fast and slow. Besides matching with electric hoist, they are also suitable for machines requiring two speeds, such as lifting and transportation.

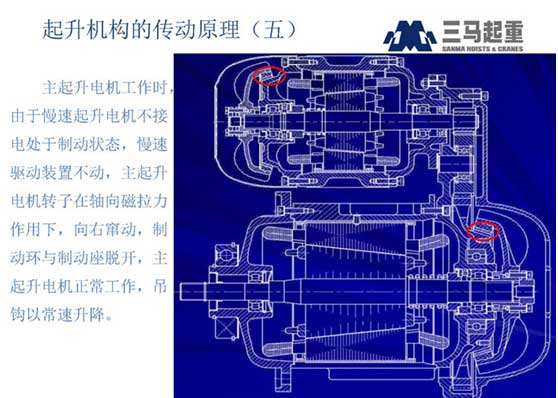

This series of dual motors is a composite motor with two conical rotor brake motors, ZDMI and ZDI, connected by a middle slow-speed drive device to achieve two speeds. Power: 0.5T ~ 16T, protection level IP44, IP54.
< br />








Project Model
Power kW
Speed r/min
Rated current (A)
Maximum Torque
Starting Torque
Start current A
Braking moment N.m
Matching gourd T
speed ratio
Rated torque
Rated torque
ZDSI 0.2/0.8
0.2/0.8
157/1380
0.72/2.4
2.0/2.5
2.0/2.5
4/13
Eight point three four
Zero point five
Eight point eight
ZDSI 0.4/1.5
0.4/1.5
157/1380
1.25/4.3
2.0/2.5
2.0/2.5
7/24
Sixteen point six seven
One
Eight point eight
ZDSI 0.4/3.0
0.4/3.0
127/1380
1.25/7.6
2.0/2.5
2.0/2.5
7/42
Thirty-four point three two
Two
Ten point eight
ZDSI 0.4/4.5
0.4/4.5
127/1380
1.25/11
2.0/2.5
2.0/2.5
7/60
Forty-nine point zero three
Three
Ten point eight
ZDSI 0.8/7.5
0.8/7.5
129/1400
2.4/18
2.5/3.0
2.5/3.0
13/100
Eighty-three point three zero
Five
Ten point nine
ZDSI 1.5/13
1.5/13
144/1400
4.3/30
2.5/3.0
2.5/3.0
24/165
One hundred and forty-seven point one zero
Ten
Nine point seven
ZDSI 2.2/18.5
2.2/18.5
144/1400
6.0/42
2.5/3.0
2.5/3.0
33/229
Two hundred and fifty-two
Sixteen
Nine point seven
