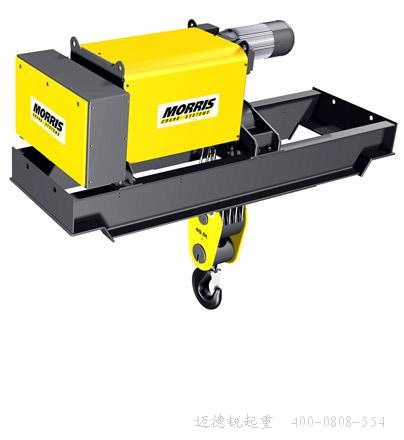

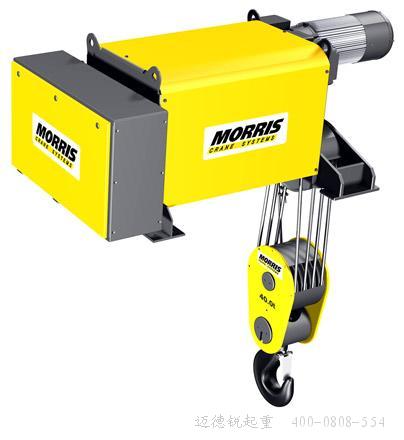

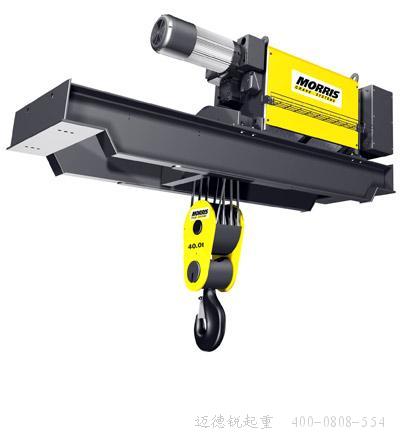

/ Index.php/info/219.html S5 series fixed electric hoist not only meets the need of fixed lifting point, but also meets the need of double-girder crane with car frame. New and unique design makes the structure of electric hoist more compact and optimizes the limit position. Light weight, quieter and more stable operation. From 20 tons to 40 tons, three different types of hoist can be used: fixed type, matching frame, matching end beam and driving (matching imported first-line brand drive).
Product Advantage

High-power two-speed variable-grade hoist motor, so that the hoisting speed can be increased by one level, and the production efficiency can be effectively improved.

Schneider Electrical Appliances, according to IEC standard assembly process < br />.
Imported steel core wire rope, longer service life of wire rope < br />
Rotary height limiter has high reliability, long service life and easy maintenance and adjustment < br />.
Limits of deceleration, phase misalignment and stop protection are set in the ascent, and stop limit is set in the lower limit, which is safer to use.

The highest working level can reach FEM-M6 < br />.
Large size electronic control box, reserved space for direct installation of car frequency converter and electrical components < br />.
Configuration of OWL Monitor


technical parameter
Lifting weight (ton)
20t
25t
30T
32t
40t
Maximum elevation (m)
Ten point five
Eighteen
Twelve
Fifteen
Twelve
Fifteen
Twelve
Fifteen
Eleven
Fifteen
Eleven
Fifteen
Working Level
M4
M6
M5
M4
M5
M4
Hoisting speed of gourd (m/min)
5.0/0.8
4/0.7
4/0.7
3.2/0.5
3.2/0.5
2.5/0.4
Hoist motor power (kW)
18/3
15/2.5
18/3
18/3
18/3
18/3
Rope sag
Four
Six
Six
Six
Eight
Eight
Power Supply
380V/50Hz
Scope of application






General manufacturing industry, electric power industry, pulping and paper industry, shipbuilding industry, iron and steel industry, mining industry and so on
