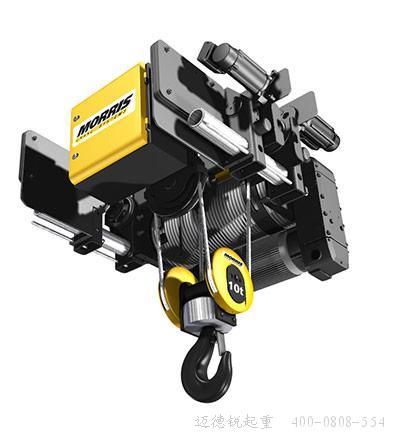

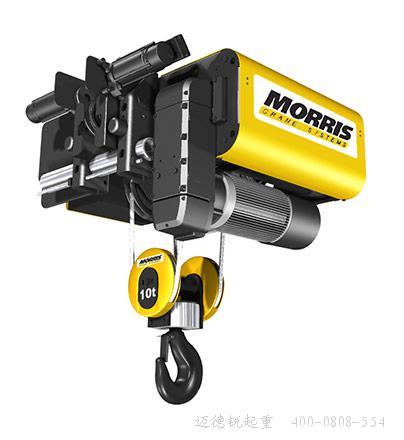

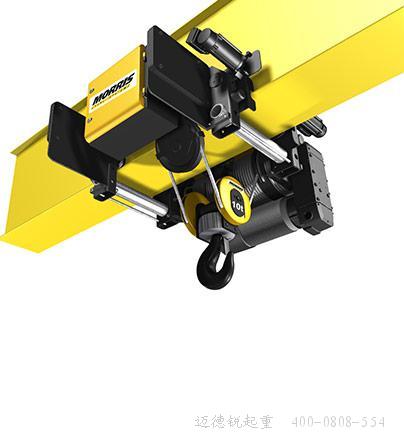

S5 series European single-beam electric
hoist has flexible design concept to ensure that the
hoist can be installed on all commonly used single beams, including monorail I-beam, European box girder and domestic LD single beam. This flexibility, combined with an effective supply chain system, ensures clearance heights that are more popular with customers, as well as fast and timely delivery.
Product Advantage
1. Special compact low clearance car configuration
2. Accurate positioning and movement with two-speed control < br />
3. Heavy FEM-M5
4. Using high-quality paint technology, the coating thickness is 80/120 µ m, epoxy resin paint has strong adhesion, acid, alkali and salt resistance, and good oil resistance < br />.
5. Dual-speed variable-grade
hoisting motor, with 60% power-on duration, lasts longer and more reliable
hoisting time; Class F insulation grade, IP55 protection, using Kalxon type bimetallic thermal protection switch, combined with brakes with service life up to millions of times, ensures longer service life and safer < br/>.
6. Enclosure type heavy-duty guidance rope device, to prevent rope disorder, more uniform force, more wear-resistant < br />.
7. The diameter ratio of drum/wire rope is larger and the horizontal drift of hook head is smaller < br/>.
8. Closed imported gearbox, light noise, small vibration, lifelong maintenance-free, more economical < br />.
9. Heavy T-class hooks are adopted to meet the German industrial standard DIN15400; 4 ropes are sagged and more stable; the hooks can be rotated with safety tongue buckle, which is safer and more convenient to use.
technical parameter
Hulu Model
S5C100L09-380/50/048-1N
S5C100L12-380/50/048-1N
Lifting weight (ton)
10T
Maximum elevation (m)
Nine
Twelve
Working Level
M5
Hoisting speed of gourd (m/min)
5.0/0.8
Hoist motor power (kW)
9/1.4
Vehicle speed (m/min)
20/5
Power Supply
380V/50Hz
Scope of application
General manufacturing industry, electric power industry, pulping and paper industry, shipbuilding industry, iron and steel industry, mining industry and so on
