Product Advantage

1. Marine hoist is suitable for use in occasions with oil mist, salt mist and mould. The motor has been specially treated and its insulation grade is F < br />.
2. Manual release device with power off can safely release heavy objects < br/> under power off condition.
3. Use galvanized steel wire rope, hook pulley set, electronic control box and other accessories for marine inspection
.
4. It has upper limit double limit function < br />.
5. Lifting Limit Protection Function

6. The running car is driven by rack and adapts to marine and ship vibration and inclination < br />.
7. It has protective functions such as overload, over current, voltage loss, phase dislocation and limit alarm < br />.
< br />
Technical parameters

Hulu Model
CD1-H/MD1-H
Lifting weight (ton)
Zero point five
One
Two
Three
Five
Ten
Sixteen
Twenty
Maximum elevation (m)
18 m
30 m
30 m
30 m
30 m
30 m
16 m
16 m
Working Level
M3
Wire rope ratio
2/1
2/1
4/2
4/1
4/1
Lifting speed of CD1-H gourd (m/min)
Eight
Eight
Seven
Three point five
Three point five
Lifting speed of MD1-H gourd (m/min)
8/0.8
8/0.8
7/0.7
3.5/0.35
3.5/0.35
CD1-H hoist motor (kW)
Zero point eight
One point five
Three
Four point five
Seven point five
Thirteen
MD1-H hoist motor (kW)
0.8/0.2
1.5/0.2
3.0/0.4
4.5/0.4
7.5/0.8
13.0/1.5
Operating motor (kW)
Zero point four
Zero point four
Zero point eight
Zero point eight
One point five
2 & times; 1.5
2 & times; 1.5
Fixed type gourd (A)
& radic;
& radic;
& radic;
& radic;
& radic;
& radic;
Monorail trolley hoist (B)
& radic;
& radic;
& radic;
& radic;
& radic;
& radic;


Scope of application

Suitable for ship applications, single or double speed models are provided. The main applications include



1. Engine room operation: Mainly used for maintenance of main engine, replacement of piston and other important parts during trial voyage < br />.

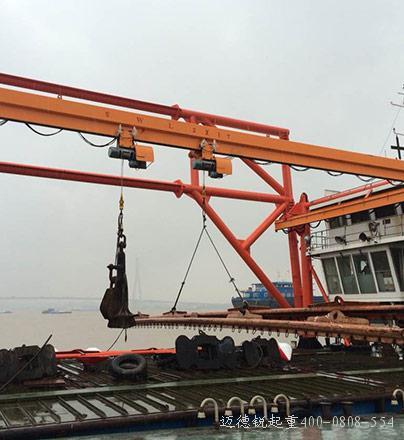

2. Deck crane: mainly used for lifting cargo and shipboard materials < br />.
